Disk harrow

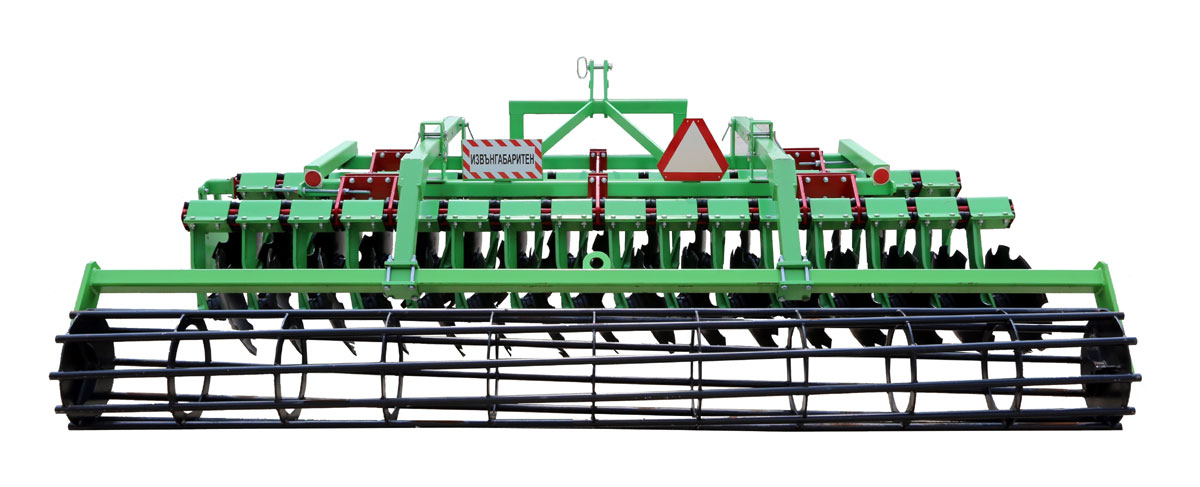

MOUNTED TYPE TORSION DISK HARROW

Model MTDH 2.5, MTDH 3.0, MTDH 3.5 and MTDH 4.0

Use:

The Mounted Torsion Disk Harrow MTDH is designed for disk harrowing of fields or prior to sowing cultivation, for disk harrowing of fallow land with the purpose of lumps fragmentation and field evening, for disk harrowing of areas with the purpose of impoving the soil aeration and molehill removal at depths of up to 12 cm.

Disk harrow harbors great functional reliability and high productivity even in the presence of a large amount of weeds or other plant debris.

The double-row position of the working bodies ensures good soil cultivation and soil mixing, as well as maximum fragmentation of plant waste, and reduces blockage. The smoothing roller additionally contributes to the best soil condition for sowing.

It can be used on all types of soils except for the wet soils. It can also move on inclined terains up to 15%.

Disk harrow for fused surface cultivation is a mounted type machine and aggregates with a tractor over the three-point hitch system.

Specifications

Nr	Parameters	Units	model
1	model		MTDH-2.5	MTDH-3.0	MTDH-3.5	MTDH-4.0
2	Type		Mounted
3	Working width	m	2.5	3.0	3.5	4.0
4	Transport widthа	mm	3100*	3120*	3620*	4120*
5	Operating depth	сm	8 to 12	8 to 12	8 to 12	8 to 12
6	Transport height	mm	820	820	820	820
7	Length	mm	1530	1530	1530	1530
8	Mass	kg	1200	1600	1670	2000
9	Number of working bodies	pcs.	20	24	28	32
10	Diameter of working bodies	mm	560	560	560	560
11	Operating speed	кm/h	to 10	to 10	to 10	to 10
12	Transport speed	кm/h	to 25	to 25	to 25	to 25
13	Minimum working clearance	mm	660	660	660	660
14	Transport clearance	mm	300	300	300	300
15	Static stability	deg	over 35°	over 35°	over 35°	over 35°
16	Recommended power of the towing equipment	hp	80	100	120	150
